S5 Loom Picker,S-6 Textile Picker,S7 Weaving Machinery Pickers

Contact Now* Send an Inquiry to this supplier.
or
Start Order * Name your price

Browse by Category

Contact us

Xinxiang City Xinda Textile Machinery Parts Co.Ltd
[China]

Address
Huixian 100 Springs eight mill village on the 17th Xinxiang Henan
Phone
86-152-37383444
Contact name
YangShengJun

Quick Information

  • Brand Name: SHANGHAIGOLD
  • Place of Origin: China
  • Model Number : S5,S6,S7
  • :

Description

S5 Loom Picker,S-6 Textile Picker,S7 Weaving Machinery Pickers,Textile S5 pickers,GOLD shuttle loom pickers are mainly used for shuttle loom. Its function principle is that the skin knot hits the shuttle and provides power for shuttle flight. The shape of S5 skin knot is cuboid, two flat tongues (lining) are installed inside. The outer side of textile skin knot is fixed by two rivets, and the product application market is Southeast Asia.

Packaging specifications of textile S5 pickers: carton, 100 pieces/case, color: light yellow, shape size of knot on S5 loom (parameters): width 34 mm, height 34 mm, length 117mm, inner cavity size: 47.5 mm*11 mm, product starting order more than 1000, delivery time 25 days. Loom S5 leather knot, S-5 shuttle knot procurement please contact our company to ensure product quality and prompt delivery.

The Picker of S7 is mainly used in the loom of automatic change of weft and bobbin. According to the size of shuttle, the shed knot products of different sizes are selected. The shed knot of S7 is 35mm in height, 37.5mm in width, 61.5mm in width and 5.9mm in thickness. Its cross section is square. Two shed tongues R54 are installed in the inner cavity of S7 shed knot.S7 Double End Picker For Shuttle Loom part.

S-6 Picker,Textile S5 S7 Picker Of Disc Loom,Suitable for G263 type circular loom,Bottom double flank,S6 parameters: wide 34mm* high 34mm* long 112.7mm,The middle tongue does not show,It can be used in both directions, so it is called double headed leather knot.



Price

  • Delivery Port : Qingdao

Packaging & Delivery

  • Delivery Lead Time : 20days
  • Supply Ability : 30000pcs/month

Product Image

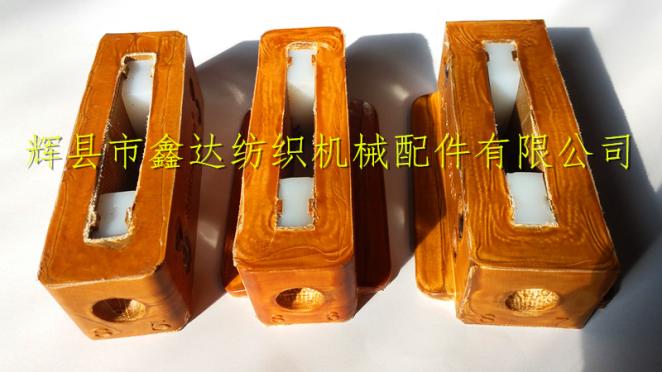

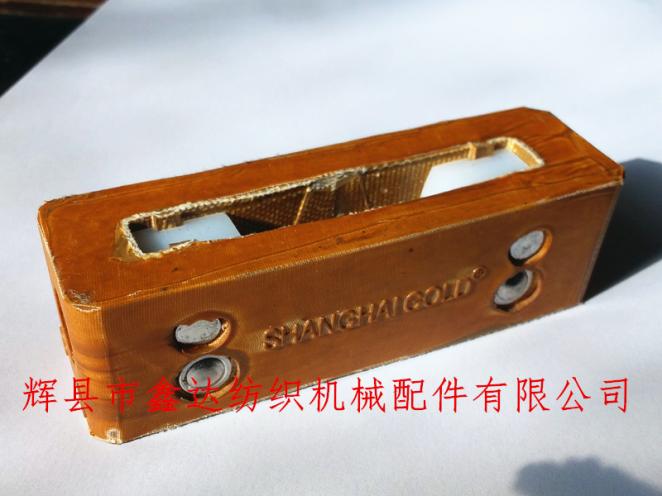

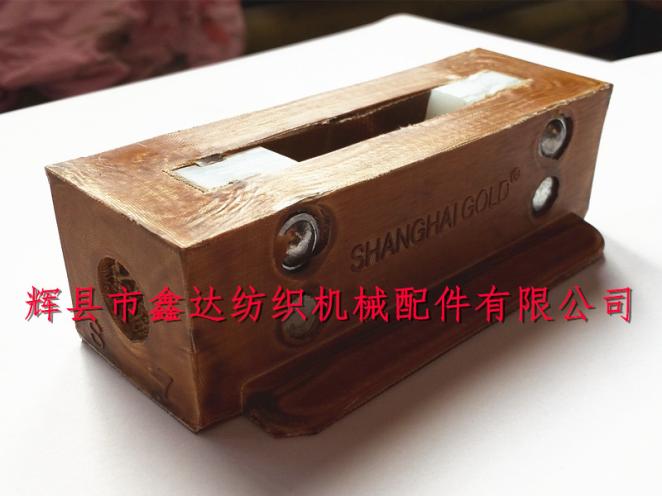

  • S5 Loom Picker,S-6 Textile Picker,S7 Weaving Machinery Pickers image
